M-Series HMI Panel PCs are designed to provide versatile and cost-effective solutions for your industrial needs. P-cap multi-touch screen equipped with industrial motherboard offers various input / output connectors. Intel® Core™ i5 processors onboard with fanless cooling system assure steady performance and silent functioning.
M-Series HMI perfectly fits in applications where total costs of ownership (TCO) and quick recovery of failure is important. The flexible system design provides easy access to components and can be serviced by local maintenance team.
Versatile, easy-to-service and upgradable M-Series HMI is the best solution for industrial automation.
|
|
 |
M-Series HMI Modular Panel PCs
PCAP-Multi-Touch, Fanless Core™ i5, PCI-Express
service-friendly, performant, protected
|

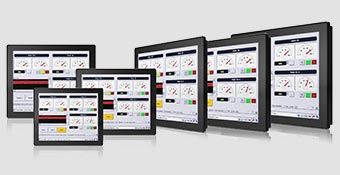

Many different display diagonals
30,7 cm (12,1") to 54,6 cm (21,5")
|

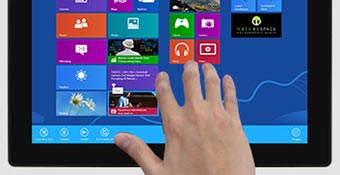

P-Cap multi-touch screen
(durable & user-friendly)
|

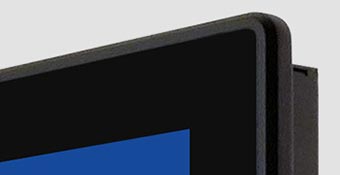

Flat surface without dirt edges
(easy to clean)
|

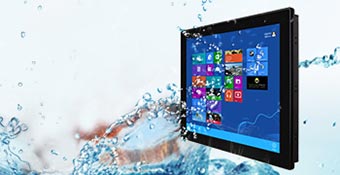

IP65 protection on the front
(dust and water resistant)
|
|
Technical Data
|
|
CPU:
|
Intel® Core™ i5-5200U (2 × 2,2 GHz)
|
|
Memory:
|
min. 4 GB RAM / 64 GB SSD
|
Interfaces:
|
2 × RJ45 Gigabit Ethernet, 4 × USB 3.0, 2 × COM, HDMI, VGA etc.
|
|
Expansion slots:
|
1 × PCIe-X4
|
|
Operatingsystem:
|
Windows 7 / 8.1 / 10 IoT
|
|
Power Input:
|
12–24 Volt (isolated)
|
|
|
LCDs:
|
30,7 cm (12,1") 1024×768 to 54,6 cm (21,5") 1920×1080
|
|
Touchscreen:
|
Projected-capacitive multi-touch (PCAP)
|
|
|
Protection:
|
IP65 front side
|
|
Mounting:
|
Panelmount or VESA 100×100 mm
|
|
Service-friendly box PC (EL4010) + display unit = Modular Panel PC
|
|
|
For telephone advice please do not hesitate to contact us.
We’ll be glad to make you a non-binding offer.
We look forward to your call: +49 (0)8131 33204-119
