Stationary or vehicle-mounted:

Rugged multi-touch HMI and display series

12.05.2020,

the elegantly designed yet rugged industrial-grade GS-Serie is designed for ease of use with a brilliant, plane screen that combines excellent readability and P-CAP (Projected Capacitive Multi-Touch) technology and is available in 10.1", 12.1" and 15" sizes.

The heavy-duty HMI panels are available in various configurations. These robust systems with full IP65 protection against water and dust are equipped with IP65-compliant M12 screw terminals and suitable adapter cables:

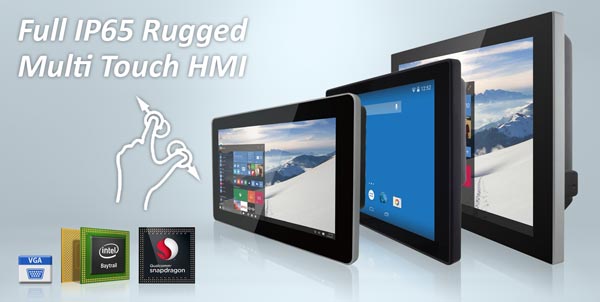

Full IP65 Rugged PCAP-Multi-Touch HMI-Panel-PC und Display mit Intel Celeron oder Cortex CPU
Edge-to-Edge-Design
The truly flat aluminum panel PCs and displays in the elegant edge-to-edge design are easy to clean and prevent water or liquid droplets from entering the openings of the device.
Systems mounted on vehicles and machines are highly affected by vibrations and shocks
Systems mounted on vehicles and machines are highly affected by vibrations and shocks. The GS Series is tested and protected according to MIL-STD-810F/G.
IP65 protection class
What does this IP65 protection class mean? The “6” means that the device is completely protected against dust (the highest possible protection class for solids). The second number indicates protection against liquids. The “5” means that the device is protected against splash water from all directions.
available display sizes of 10 to 15 inch as HMI-Panel-PC or Monitor
The three available display sizes of 10.1", 12.1" and 15" as HMI panel PC (in the Windows/Celeron and Android/Cortex versions) or as a purely passive monitor enable a wealth of interesting applications.
10" PPC: discover now >
10" LCD: discover now >
12" PPC: discover now >
12" LCD: discover now >
15" PPC: discover now >
15" LCD: discover now >
Display:   10.1" / 12.1" / 15"
Multi-touch projected-capacitive (PCAP)
CPU:   Celeron N2930
Freescale Cortex A9 i.MX6
or purely passive display
OS:   Windows 10 IoT Enterprise
Android
Linux / QT / Ubuntu
Power:   9~36 VDC or
12 VDC
Mounting:   VESA interface at the rear
Protection class:   IP65 protection all around
(incl. interfaces)
Shock/Vibration:   MIL-STD-810F/G
