Robust, economical, modular, compact: 24/7 high-performance & flexibility in booksize format.
|
|
|
24/7 high-performance & flexibility in booksize format.
robust • economical • modular • compact
|
|
|
23.08.2022,

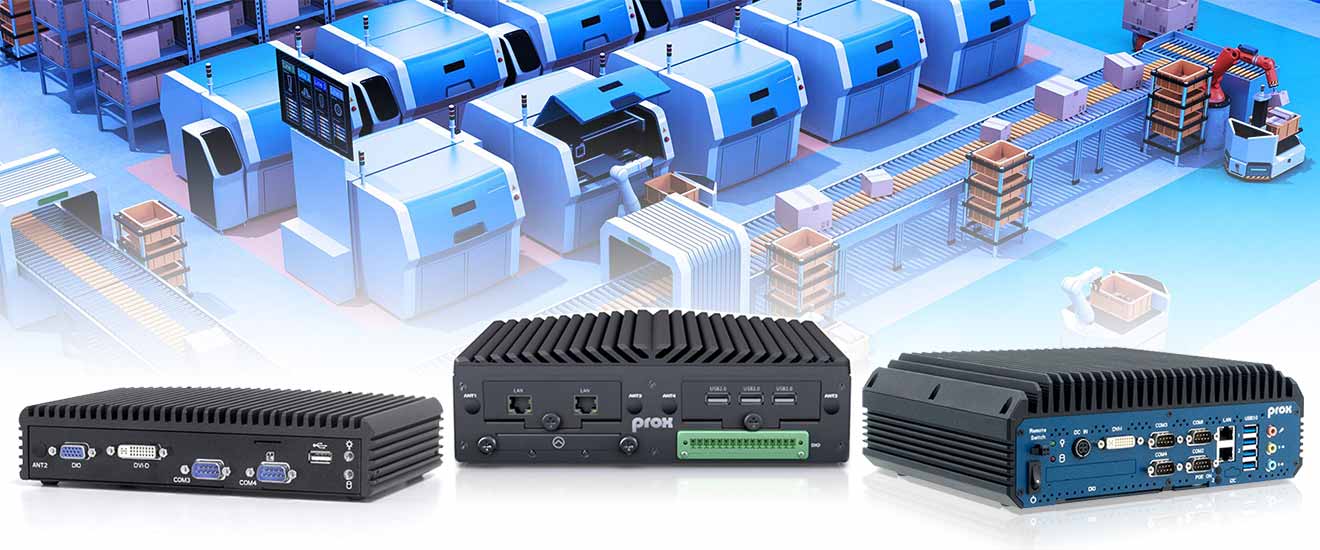

the EmbeddedLine industrial PCs offer high-performance computing power in a versatile booksize format based on fanless Core-i architecture.
The robust and easy-to-maintain compact industrial PCs offer maximum versatility thanks to their wide range of interfaces and interesting options, making them ideal for demanding industrial applications, even in 24/7 continuous operation, e.g. for plant and machine control:
|
|
Slim, economical, rugged:
|
|

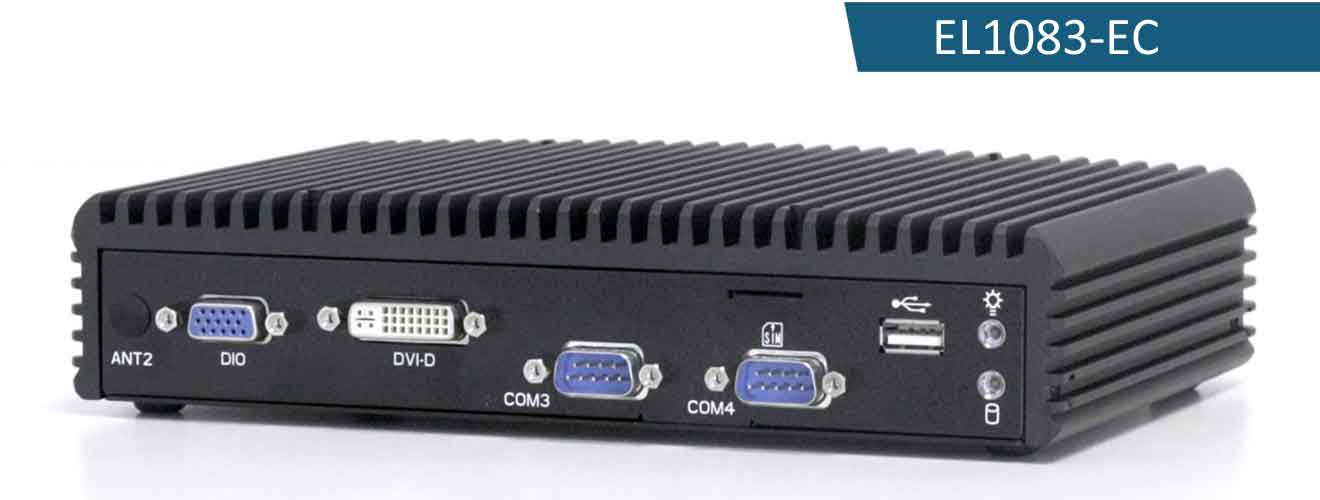

Booksize embedded PC for professional use in robust aluminum housing. Designed for industrial applications in continuous operation. Easy installation with mounting rails or on top hat rail.
The powerful Intel J1900 4-core CPU, the full-fledged 2.5" SSD (256 GB), an extensive interface selection and the good cooling concept enable a variety of demanding applications in industrial environments.
|
|
Discover EL1083-EC
|
|
Powerful, modular and communicative:
|
|
|

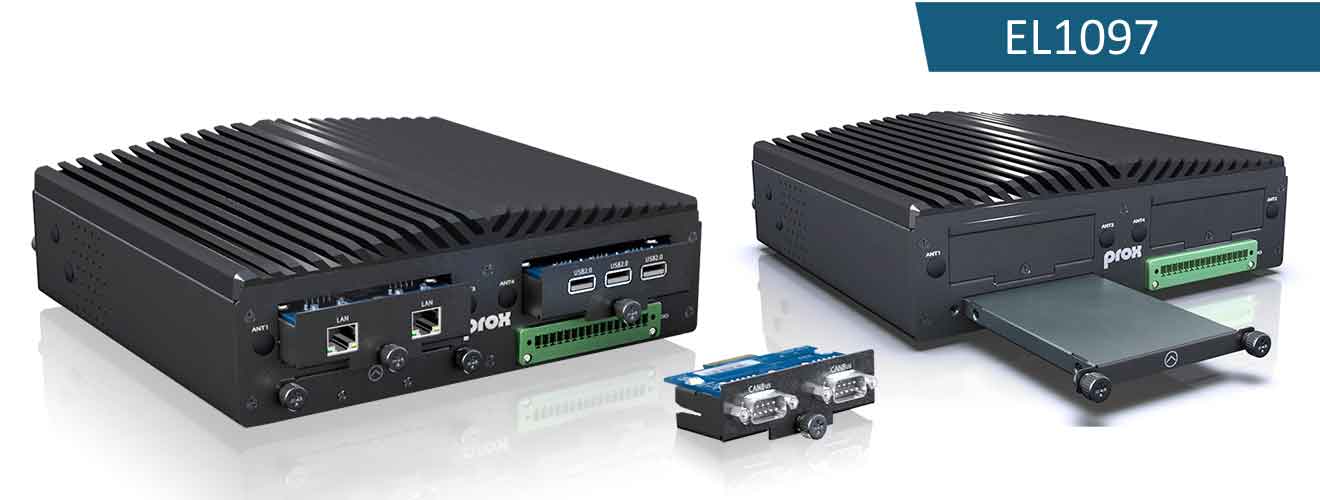

EL1097: The embedded PC can be extended with additional modules for further interfaces. The hard disk or SSD can be accessed without tools and is easy to maintain.
|

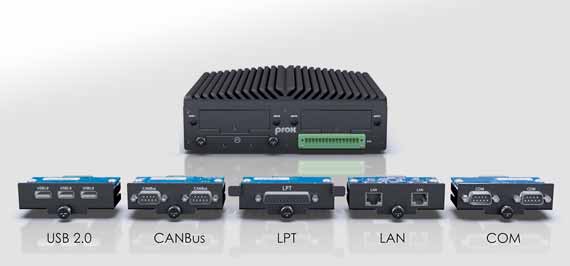

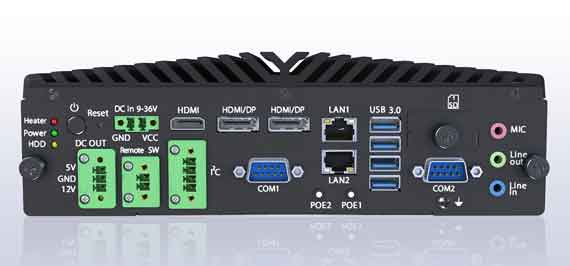

In addition to the large variety of interfaces (Fig. back side), further modules are available …
… such as USB, CANBus, LPT parallel port, RJ45 Ethernet or serial COM interfaces.
|
|
Discover EL1097
|
|
Extensible high performance:
|
|
|

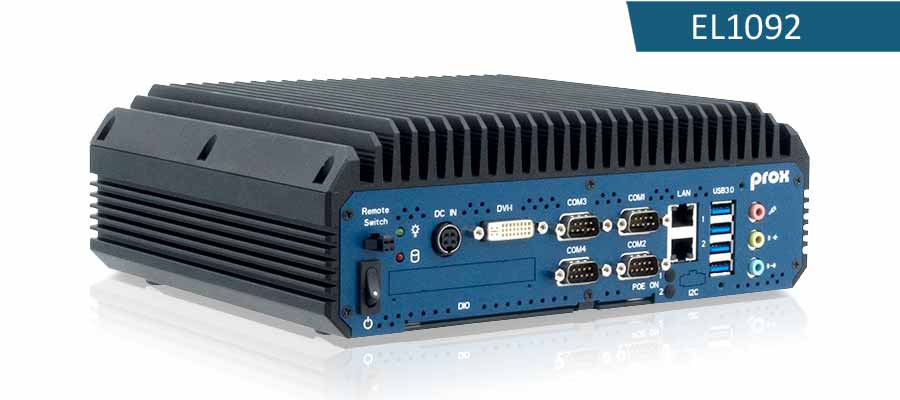

EL1092: Highest capacity, robustness and interface diversity in booksize format. Designed for compute- and data-intensive processing on-site in continuous operation with 2 drive bays, RAID option and Core-i CPU. Extensive equipment of interfaces for high connectivity and easy integration into all processes.
|

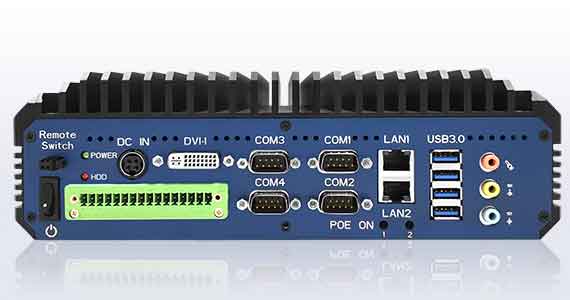

The bandwidth of the implemented interfaces opens up a wide range of application possibilities. Here with digital I/O as 16-pin terminal block.

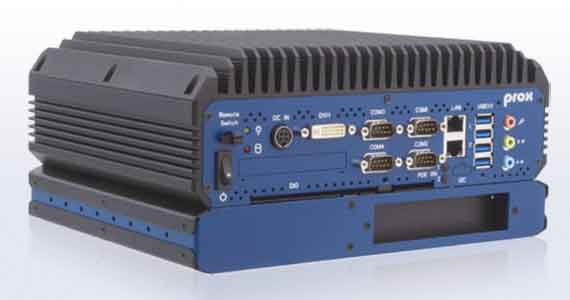

On request, you can get a version with an extended case at the bottom to be able to expand the system with a PCI Express card.
|
|
The EL1092 is available in versions with two different chipsets - as EL1092-H with the Intel H110 chipset and as EL1092-Q with the Intel Q170 chipset:
|
|
|
|
All three models in comparison:
|
|
|
EL1083‑EC
|
EL1092
|
EL1097
|
|
CPU Intel® J1900:
|
X
|
—
|
—
|
|
CPU Core i3/i5/i7:
|
—
|
X
|
X
|
|
Fanless:
|
X
|
X
|
X
|
|
RAM (GB):
|
4–8
|
8–32
|
4–32
|
|
PCI Express:
|
—
|
optional
|
—
|
|
Mini-PCIe:
|
1
|
2
|
1
|
|
2.5" SSD:
|
1
|
2
|
1
|
|
Size cm:
|
22×4,5×15
|
26×8×20
|
23×7×21
|
|
Operating temp. °C:
|
0 ~ 50
|
–10 ~ 50
|
0 ~ 70
|
|
Operating system:
|
Windows 10 IoT Enterprise
|
|
|
|
| • |
