Responds anytime: Resistive touch is the durable classic for industrial panel PCs – also in the brand-new stainless steel generation IE series with the latest Intel CPU.
͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏
|
|
|
Responds anytime: Resistive touch is the durable classic for industrial panel PCs
also in the brand-new stainless steel generation IE Series with the latest Intel CPU.
|
|
|
Discover IE Series Panel PC
|
|
21.11.2023,
did you know that our latest Panel PC generations are also available with resistive touchscreen technology (instead of PCAP multi-touch), a proven technology for decades?
More than 20 years ago, we installed the first ones at TL – the pressure-sensitive touch systems for classic 1-finger operation are unbeatable in terms of reliability.
The advantages at a glance:
| • |
very easy to clean |
| • |
lowest interference liability also with dirt and moisture |
| • |
easy integration |
| • |
low overall system costs |

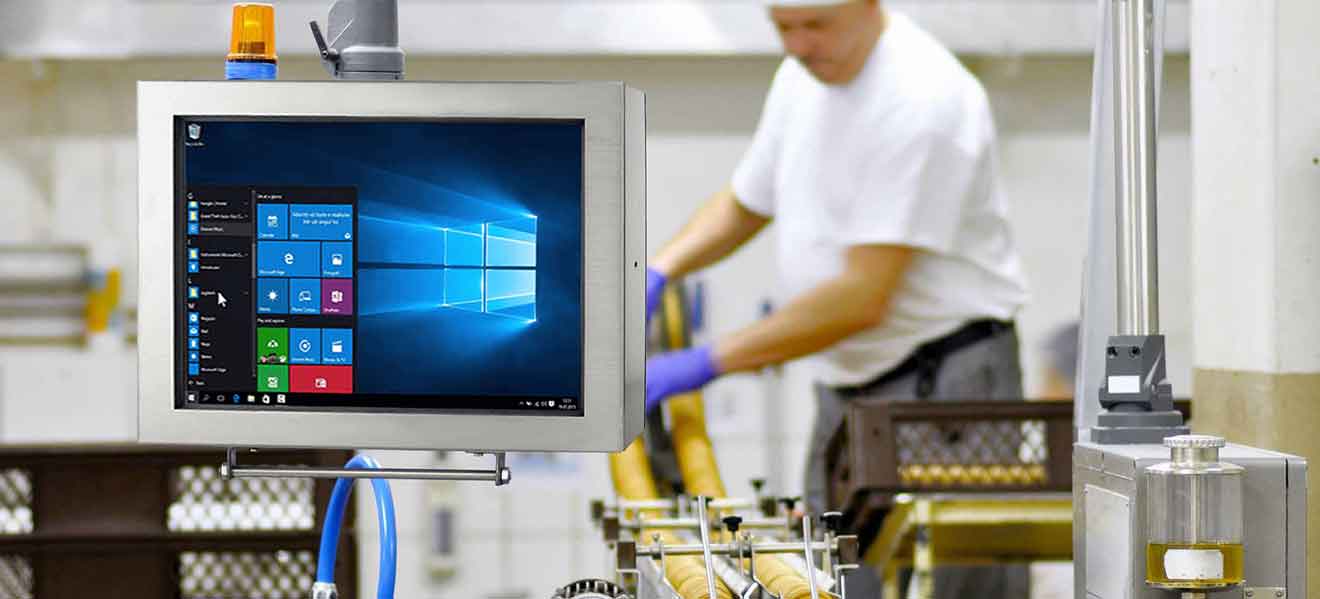

This also applies to the innovative IE Series, with which you can easily realize demanding projects, e.g. in the food, chemical and pharmaceutical industries, medical technology, process engineering, plant engineering, etc.
|

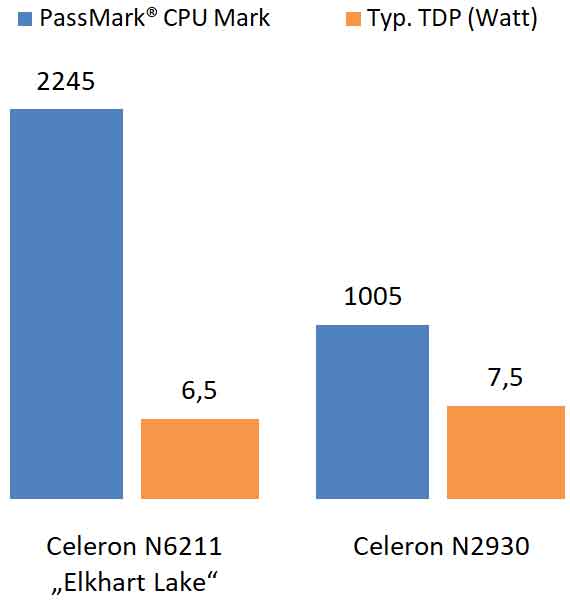

Intel Celeron N6211 “Elkhart Lake” – this is the new generation of Celeron CPUs from Intel’s long-term available embedded program. Thanks to modern 10 nm architecture, the performance surpasses the previous type by far. With this efficient and economical fanless system, you will create future-proof applications.
|
|

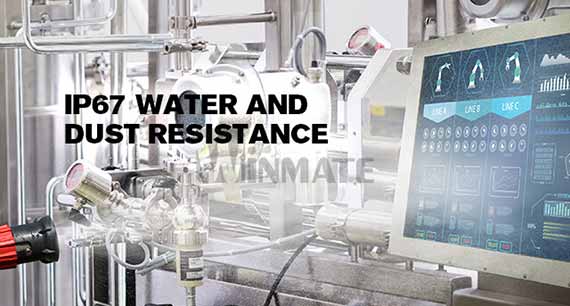

Made entirely of stainless steel, the systems are absolutely dust-tight and protected all around against dirt and water according to IP65. The housings are corrosion and liquid resistant – perfect for frequent cleaning and aggressive disinfection.
Talk to one of our experts to find the exact device that meets all your requirements and standards!
|
|
Discover IE Series Panel PC
|
|
|
The IP code (Ingress Protection) defines the degree of protection of housings in the international standard IEC 60529. IP65 means: The housing is absolutely dust-tight all around and protected against water jets from different angles.
|
AISI / SUS 316 Stainless Steel: Better corrosion resistance, tensile strength and acid resistance than standard AISI 304 – perfect for aggressive cleaning processes and environments.
The resistive Touch can also be operated with coarse gloves and a pen, has a robust, easily washable surface and is ideal for workplaces even with a lot of dirt and moisture.

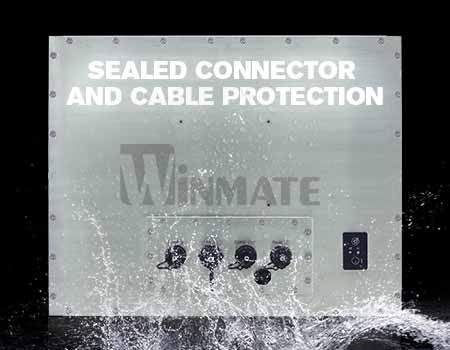

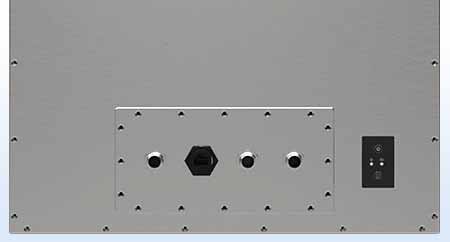

All interfaces are implemented at the rear via fully protected M12 connectors. The appropriate connection cables are included in the scope of delivery.

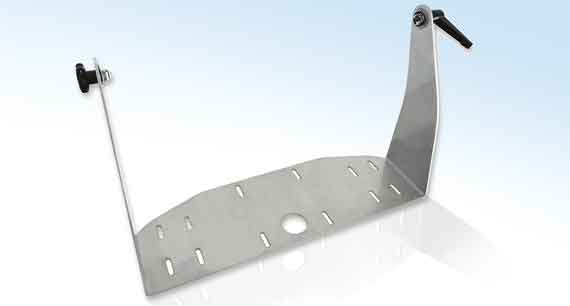

Clever accessory: the stainless steel tiltable yoke mount for stable installation as an alternative to VESA mounting systems.
|
|
Discover IE Series Panel PC
|
|
|
|
Specifications IE-Series
|
|
Display:
|
15"–24", 1024×768 to 1920×1080
|
|
Touch screen:
|
Resistive, 1-finger input
|
|
CPU:
|
Intel® Celeron N6211 (2 × 1,2–3,0 GHz),
fanless, Embedded model
|
|
OS Support:
|
Windows 10 / 11 IoT Enterprise
|
|
Memory:
|
4 / 8 / 16 GB DDR4
|
Storage:
|
128 / 256 / 512 GB M.2-SSD,
2.5" SSD max. 1 TB optional
|
|
Interfaces:
|
2 × USB 2.0, 1 × COM, 1 × RJ‑45 Ethernet,
IP65-protected M12 connection cable incl.
|
|
Communication:
|
WLAN / Bluetooth optional
|
|
Graphics:
|
Intel UHD (10. generation)
|
|
Security:
|
TPM 2.0
|
|
Buttons:
|
Power, Reset
|
|
Power:
|
12 V/DC, M12 waterproof connector
|
|
Material:
|
Stainless steel AISI / SUS 316
|
|
Protection:
|
IP65 all around against dust and water
|
|
Mounting:
|
VESA mounting interface,
tiltable yoke mount optional
|
|
|
|
|
|
|
|
|
|
|

|
|
|
|
